Precise and Efficient
G N (Präzisionstechnik Nürnberg) is a manufacturer of Precision Surface Grinding Machines, ID Hole Saws and Diamond Wire Saws for metal, ceramic and especially silicon and other semiconductor materials.
We cover the complete spectrum of cup wheel surface grinding machines for the machining ofboth metallic and non-metallic materials.
These include ceramics, silicon and many other brittle, dicult-to-machine materials for a wide
variety of high-tech applications.
Info G
Wetterkreuz 35
D-91058 Erlangen
Tel. +49 913 175 76 35
Fax +49 913 177 12 91
Product Overview
MPS 1
Height ne feed
Wet grinding device
Magnetic chuck (200x100mm)
Low maintenance requirement
MPS1 R130
Surface- and match grinding od rings and discs
Highest flatness accuracy rotary table
Rotary table ø 130 mm
Easy handling
MPS 2 120
High precision machine with 1μm ne feed
Permanent magnetic chuck(250x150mm)
Use of CBN and diamond grinding wheels
Dressing and balancing device
Wet grinding device

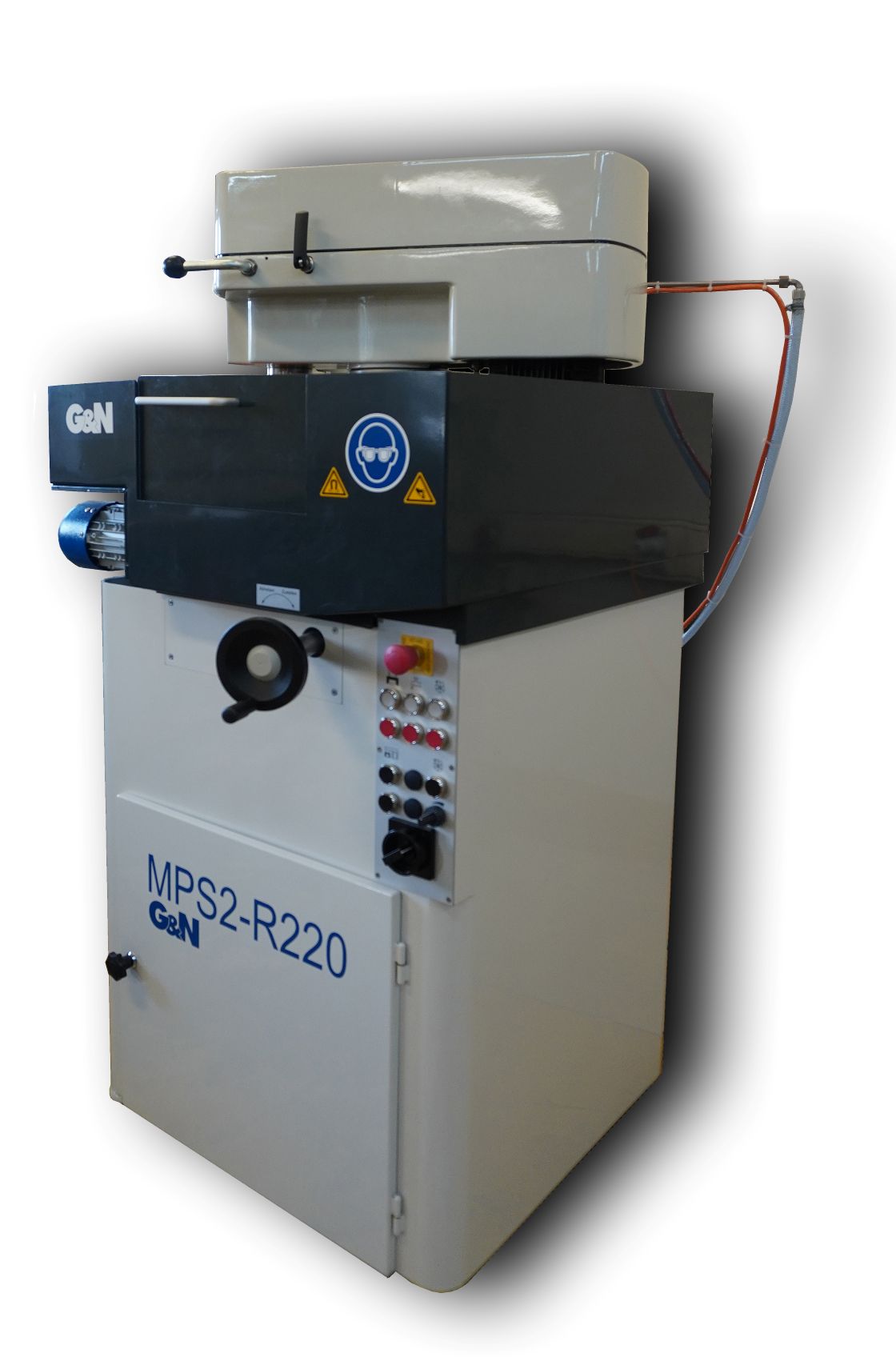

MPS2 R220
Rotary table grinding machine with magnet size Ø220mm
Grinding height up to 170mm
Gross and ne infeed
Dressing and balancing device
Wet grinding device

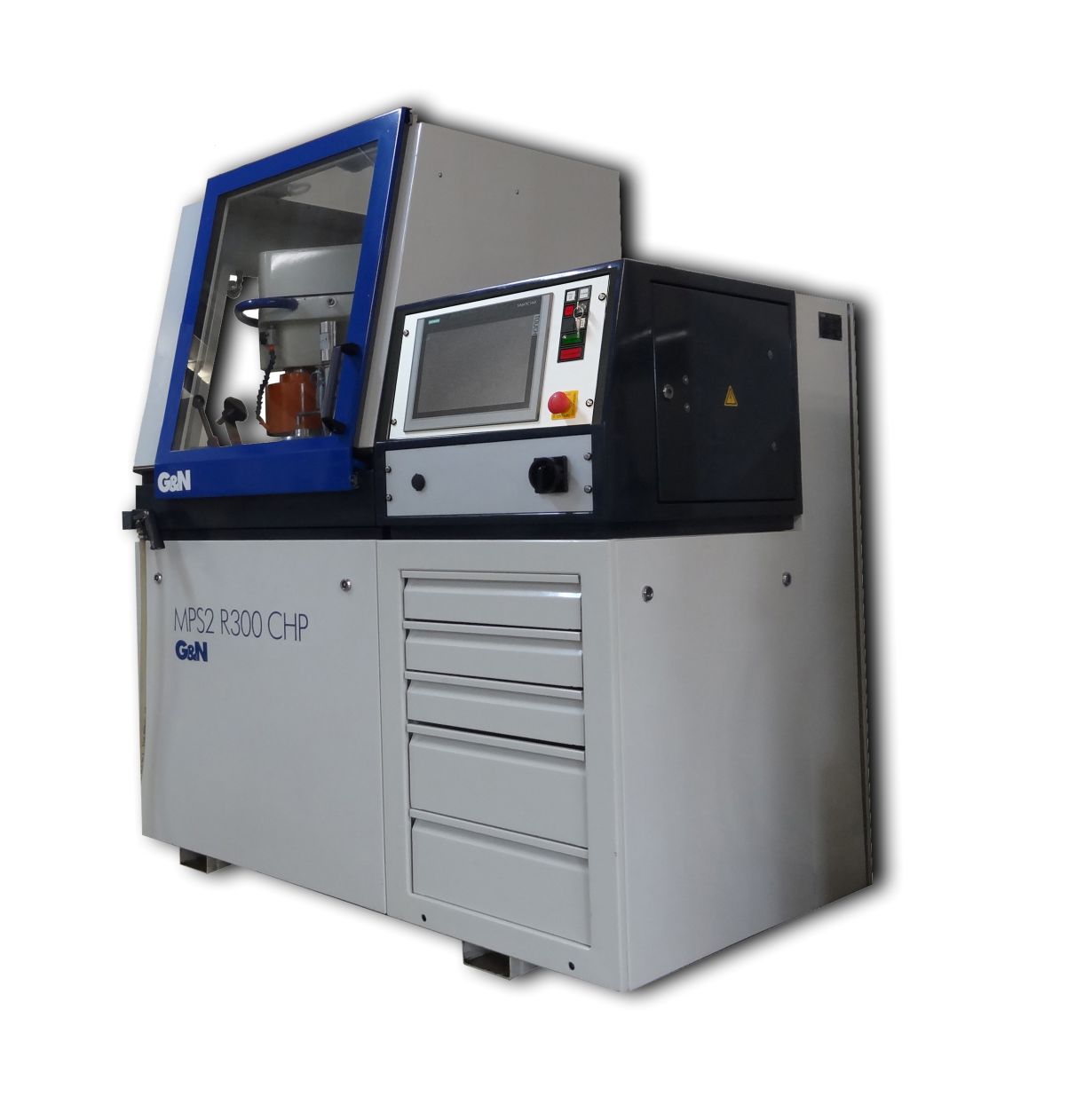

MPS2 R300 CHP
Match grinding for ball bearing ring pairs with rotary table Ø300mm
Fully closed workspace
Usage of CBN and diamond grinding wheels
Integrated measurement control
Rational use in series production

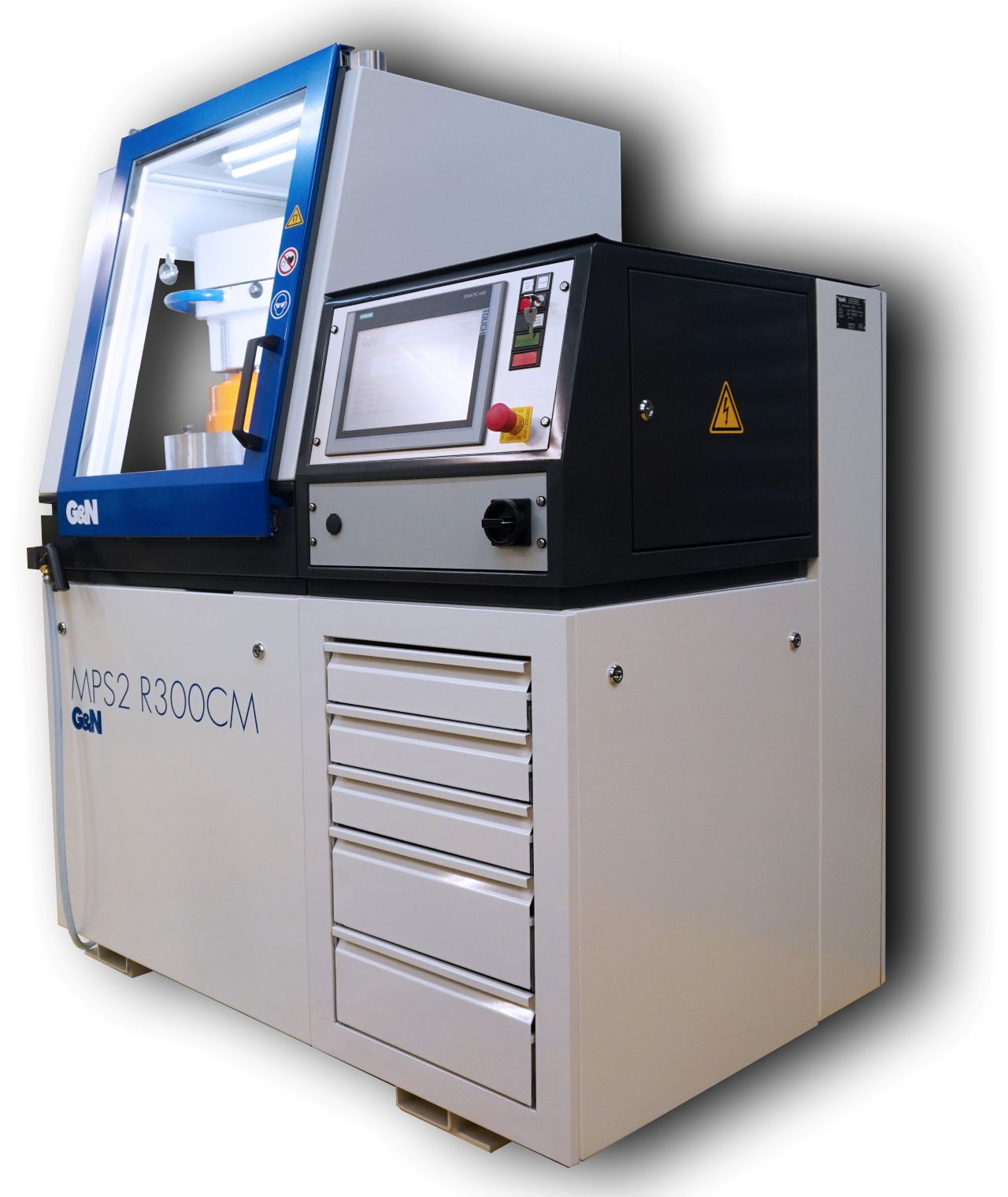

MPS2 R300 CM
Cup grinding process with rotary table Ø300mm
Fully closed workspace
SIEMENS SIMATIC S7 control
Integrated measurement control
Programmable grinding cycles

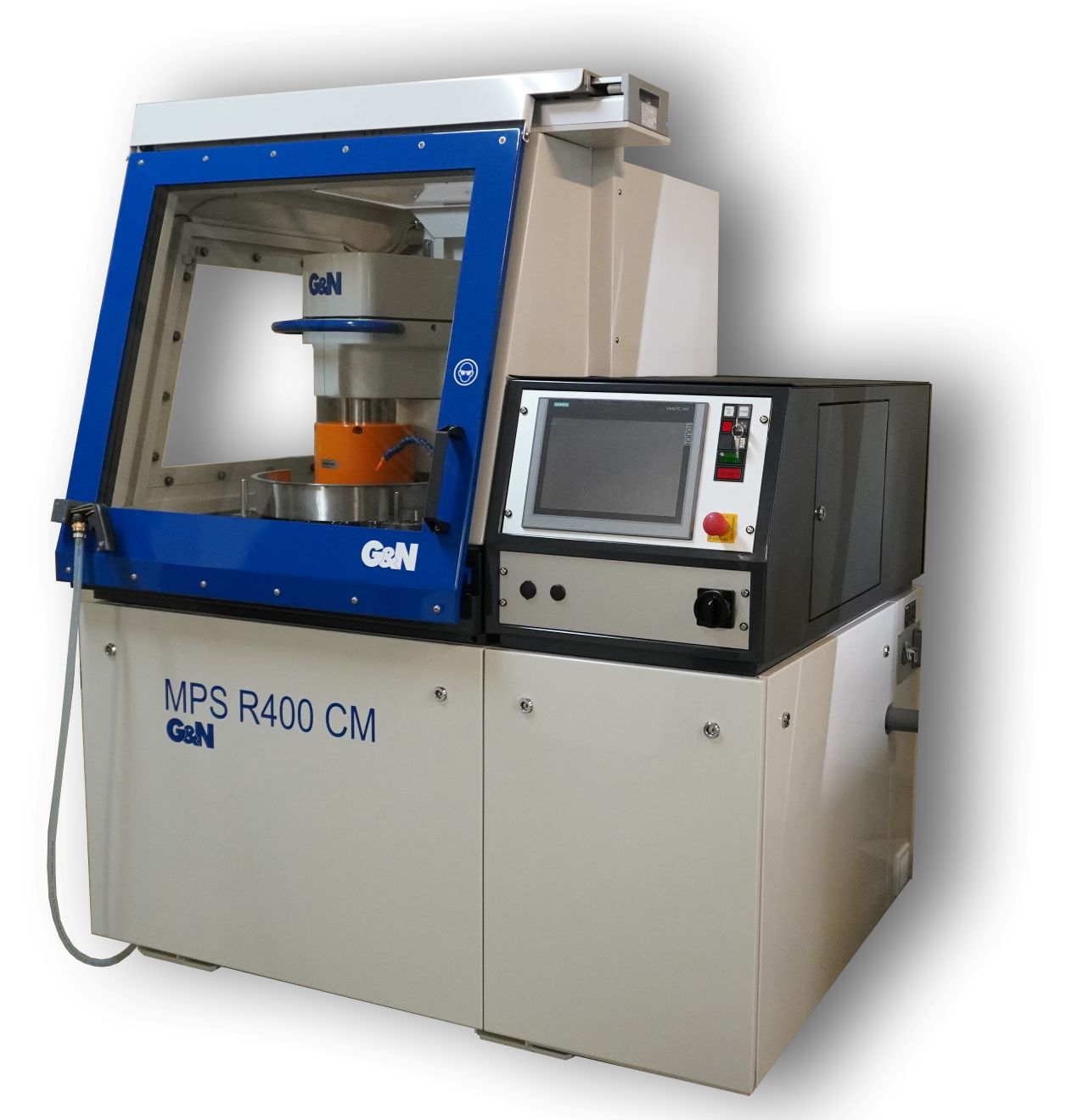

MPS R400 CM
Cup grinding process with round table Ø400mm
Fully closed workspace
PLC control SIEMENS SIMATIC S7 with touch panel
Integrated measurement control
Programmable grinding cycles with automatic fine feed
